| Variable Speed, forward/Reverse, Manual Tilt, Foot control |
| 1 Phase 220V 50/60 HZ |
| Capacity Horz/Vert 100/75KG – Rated CofG 100m |
| Welding Time 0-60 Seconds – Rotation Speed 0-4rpm OR 1-15rpm |
| Earthing 300 amp – Tilt Range 0-120 Degrees |
| Table Face Plate 320mm Diameter |
Centre of table to floor 250mm -35mm Hole thru table
|
| Dimensions L 410mm X W 410mm X H 340mm Weight 42 Kg |

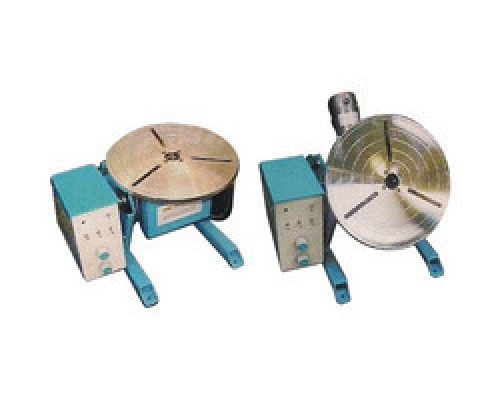

| The welding positioner or rotators with additional items can be made into a semi auto welding lathe |
| The bench positioner is small and compact and can be placed onto a bench |
| To allow the operator to weld small and light weight pipe work ie, lighting towers and lamp posts, hand rails and a variety of small tubular applications. |
| This Machine incorporates a rotating table with forward/Stop/reverse Functions. |
